Most bathroom remodeling is judged on the day the glass goes in. We judge it years later, when the grout is still tight and the subfloor is still dry. A bathroom gets soaked every day, so the parts that matter most are the ones you'll never see: the membrane, the slope, the fan duct and the framing under the tub. Here is how we approach those decisions within our design and construction process.
Bathroom Remodeling Starts Behind the Tile
Tile and grout are not waterproof. Water passes through cement grout, so the real barrier is the membrane.
Sheet membranes are bonded with thin-set, seams overlapped and corners banded, and their factory-set thickness is consistent. Liquid-applied membranes are rolled on in coats, often with fabric at changes of plane. They handle niches and benches well, but only at the specified thickness, checked with a wet-film gauge. Either type should be listed to ANSI A118.10, the standard for bonded waterproof membranes under thin-set tile and stone.
Flood Testing Before a Single Tile Goes Down
The drain is plugged, the pan filled with about 2 inches of water, the level marked, and the water left to sit, commonly for 24 hours, though the manufacturer and local inspector set the exact requirement. If the line drops, the leak is a membrane patch. Found after tile, it's a demolition. We'd rather lose a day than gamble the ceiling below.

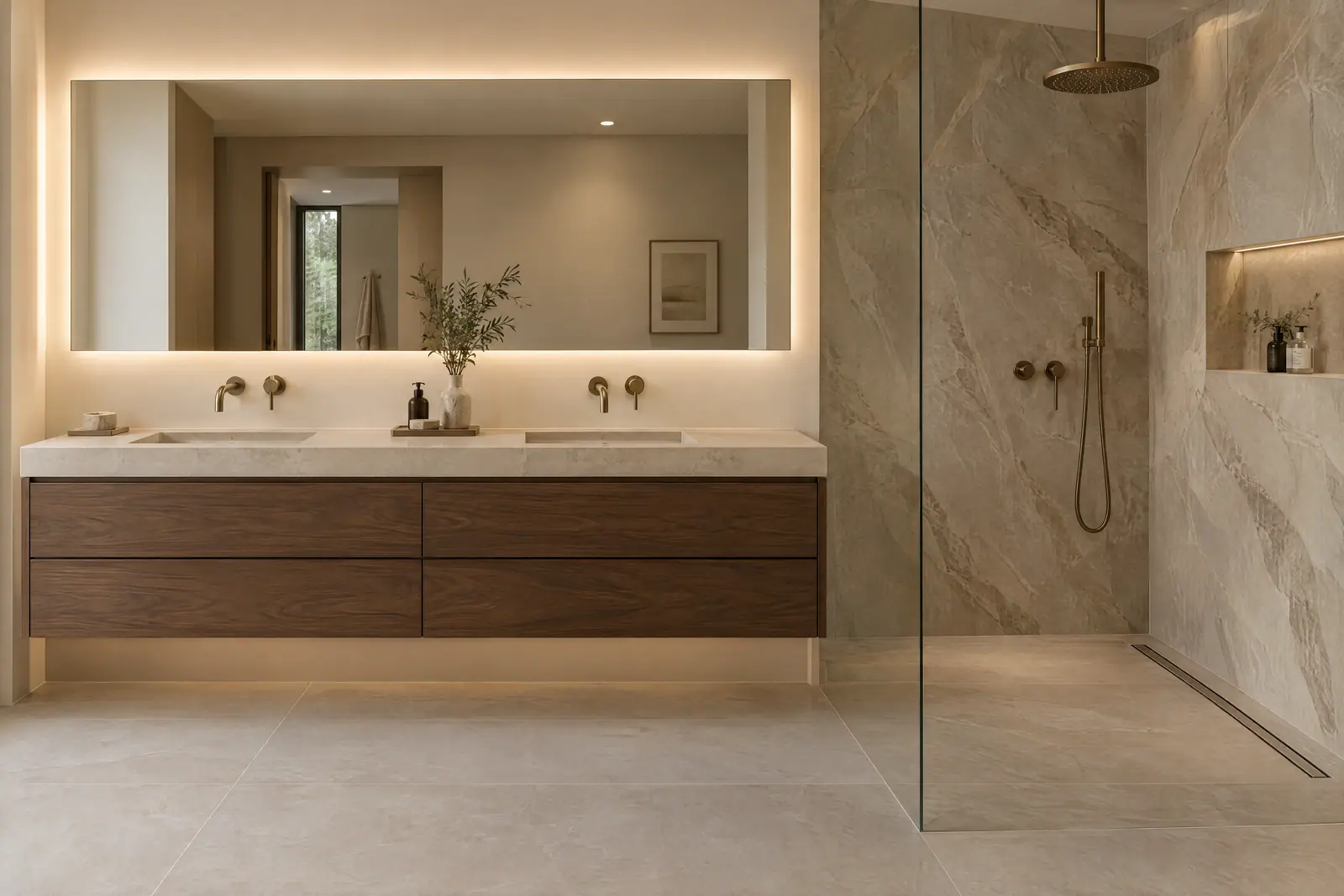

How a Curbless Shower Gets Its Slope
A curbless shower looks simple. It is one of the most structurally demanding details in bathroom remodeling. The floor still has to fall toward the drain, typically 1/4 inch per foot, yet the entry has to meet the bathroom floor flush.
On a 5-foot shower, 1/4 inch per foot is 1-1/4 inches of fall, plus the build-up of tray, membrane, thin-set and tile. On a wood-framed floor, that depth usually comes from recessing the subfloor between or below the joists. Raising the rest of the room instead creates a step at the hallway.
A linear drain changes the geometry. A center drain needs four sloped planes meeting at a point, which forces diagonal tile cuts. A linear drain at the back wall or entry lets the floor slope in one plane, making large-format porcelain practical underfoot.
Surface Choices for a Luxury Bathroom Remodel
In a luxury bathroom remodel, surface choice is half aesthetics, half what the walls and floor can support.
| Feature | Porcelain Tile | Porcelain Slab | Natural Stone |
|---|---|---|---|
| Water absorption | 0.5 percent or less | 0.5 percent or less | Varies by stone |
| Grout joints | Many | Few; panels can run floor to ceiling | Depends on tile or slab |
| Care | No sealer on tile; cement grout often needs it | Minimal grout to maintain | Periodic sealing; marble etches from acidic cleaners |
| Substrate flatness | Standard tolerance | Tight; wall waves show | Tight; some stones warp with water-based mortar |
| Shower floors | Small formats follow slope and add grip | Needs a linear drain and single-plane slope | Honed finish; polished stone is slick wet |
Flatness is where large-format work fails. Industry standards tighten the substrate tolerance once any tile edge reaches 15 inches, to 1/8 inch in 10 feet and 1/16 inch in 24 inches. Older houses often need studs planed or sistered before backer board. The same discipline applies to slab backsplashes in kitchen remodeling, where a wavy wall reads as a shadow under accent lighting.
Ventilation, GFCI and Heated Floors: What Inspectors Check
Bathroom remodeling is the time to fix ventilation, and fan sizing has published starting points:
- The Home Ventilating Institute suggests about 1 CFM per square foot for bathrooms up to 100 square feet.
- For larger rooms, HVI suggests 50 CFM per toilet, shower and bathtub, and 100 CFM for a jetted tub.
- The IRC minimum is 50 CFM intermittent or 20 CFM continuous, discharged outdoors, never into an attic.
Fans are rated at low static pressure, so crushed flex duct with three elbows moves far less than the label. We'd rather run smooth rigid duct, insulated through unconditioned space, to a dampered exterior cap. Lower-level baths add longer duct runs and often an ejector pump, so we plan them early in basement finishing.
The National Electrical Code requires GFCI protection for 125-volt, 15- and 20-amp bathroom receptacles, at least one 20-amp circuit for bathroom receptacles, and a receptacle within 3 feet of each basin. Electric floor-heating cable needs ground-fault protection too.
Planning a Primary Bathroom Renovation Around Real Dimensions
A primary bathroom renovation has room to work with, but space doesn't fix bad dimensions.
- Older vanities sit at 30 to 32 inches; comfort-height vanities run 34 to 36.
- The IRC requires 15 inches from toilet centerline to a side wall or obstruction; NKBA recommends 18.
- The IRC requires 21 inches of clear space in front of a toilet or lavatory; NKBA recommends 30.
- The IRC sets a 900-square-inch minimum shower interior that fits a 30-inch circle.
Freestanding or Alcove Tub: What the Framing Has to Carry
An alcove tub bears on three walls and a ledger. A freestanding tub often sits mid-span, where joists deflect most. Water weighs about 8.34 pounds per gallon, so a 60-gallon fill adds roughly 500 pounds. Cast iron and stone resin tubs often weigh several hundred pounds empty; carved solid stone can exceed a thousand. The IRC designs typical residential floors for 30 to 40 pounds per square foot of live load. A filled stone tub concentrates far more, so it gets a framing check, not an assumption.
Pressure-Balance or Thermostatic: Choosing the Shower Valve
Both valve types guard against scalding, and code requires a high-limit stop set no higher than 120 degrees Fahrenheit. A pressure-balance valve reacts to pressure swings, like a toilet flush, and usually runs temperature and volume on one handle. A thermostatic valve senses actual water temperature, holds it more precisely, separates temperature from volume and can feed several outlets at once.
If your goal is one showerhead plus a handheld on a diverter
Then a quality pressure-balance valve is enough and simpler to service.
If your goal is a rain head, handheld and body sprays running together
Then choose thermostatic, and confirm the piping and water heater can deliver the combined flow.
If the house has aging galvanized supply lines
Then fix the supply first, which can open a broader conversation about whole-home renovations.
Weighing a curbless shower, a heavy tub or a new layout? Framing and plumbing answers come before finish selections. Schedule a bathroom remodeling consultation
The Bottom Line on Bathroom Remodeling
Good bathroom remodeling puts the hidden assemblies first: a listed membrane that passed a flood test, a slope planned into the framing, a fan that moves air outdoors and a floor built for the tub that sits on it. Settle those early and the finishes become the enjoyable part. Browse our remodeling portfolio, then bring your questions to a consultation.
